Cakewalk and Roland selected only the very best components in designing SONAR V-STUDIO 700. At the heart of the system is SONAR Producer, the leading DAW in the market today. SONAR Producer gives you everything you need for recording, composing, editing, mixing, and mastering. Cakewalk’s flagship instruments, Dimension Pro (included in SONAR Producer) and Rapture, are also part of the software package.
The software is intelligently matched with state-of-the-art hardware that meets Roland’s high standards of quality and reliability. It includes the VS-700C V-STUDIO Console multifunction control surface and VS-700R V-STUDIO 18/24 I/O audio interface which has an integrated Roland Fantom VS hardware synthesizer based on the world-renowned Fantom synthesizer.
Taken as a whole, SONAR V-STUDIO 700 offers the “tactile feel” of working in a traditional studio, but in a way that takes advantage of everything modern technology has to offer. The system represents the best that software and hardware have to offer with amazing control, integration, and sound quality.
** Note that this SONAR recording solution is available exclusively through Roland Systems Group resellers. A standard SONAR package from Cakewalk does not include the ability to capture from REAC.
The VS-700C Console offers broader ranging control and deeper editing and mixing functionality for SONAR than any control surface on the market today
• Extensive control of editing and mixing in SONAR
• 2x13 LCD Display
• Per-channel LED Meters
• EQ/Send/ACT Section
• 20 Rotary Encoders/Switches
• 70+ Lighted Buttons
• Full Transport Control
• Jog/Shuttle/Cursor
• Seven segment time display
• Audio Monitor Controls
• Dual Headphone Output
• T-Bar, Surround Joystick
• DV-7 / V-LINK Compatible
• 9 Motorized Touch Sensitive Faders
DAW Software: SONAR 8 Producer
The critically acclaimed SONAR 8 Producer digital audio workstation is renowned for its music creation features and industry leading 64-bit audio engine
• Complete solution - creation to delivery
• Tight integration with V-Studio hardware
• Best audio quality in industry - 64-bit end-to-end
• Inspiring tools for creative production
• Fast and accurate audio & MIDI editing
• Powerful vocal processing with V-Vocal
• Deep levels of mix, edit, and instrument control through ACT
• Comprehensive mixing environment
• Unlimited tracks, inserts, effects, busses
• High track low latency performance
• 49 effects/15 instruments including Rapture & Dimension Pro
• Linear phase mastering plug-ins
• Flexible import/export for collaboration with other studios

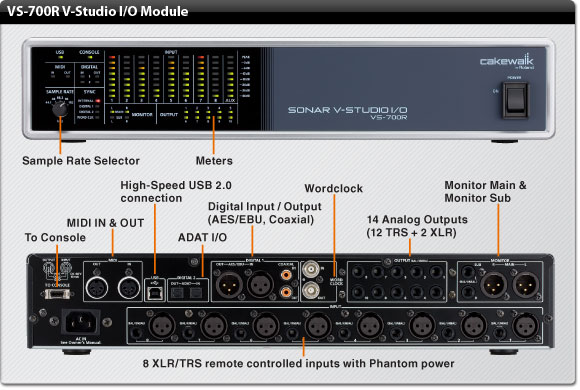

High-speed USB 2.0 audio interface that provides all the recording and routing capabilities needed to handle any music production task. It also includes an onboard hardware synthesizer.
• 21/30 (19/24 simultaneous) audio interface including mic/hi-z input and dual headphone outs on the console
• 8 TRS/XLR inputs with phantom power
• Superior 24-bit/192 kHz A/D converters
• 8 digitally controlled mic preamps
• High quality input DSP including Phase, Pad, Low-cut, EQ, and Compressor
• 14 analog outputs
• ADAT I/O
• Digital I/O (AES/EBU, Coaxial)
• Easy USB 2.0 connection
• MIDI In/Out and Wordclock Sync
• Increase I/O capability to 41/56 (37/48 simultaneous) with additional VS-700R I/O unit (available separately)
Roland Fantom VS Synthesizer
• Integrated Roland Fantom VS hardware synthesizer
• Stocked with over 1,400 patches from world renowned Fantom Synth
• Hardware synth offers low latency and low-CPU performance
• VSTi plug-in, synth editor, and routing within SONAR for seamless integration of Fantom VS into your creative workflow
• Expandable via SuperNATURAL expansion board (ARX) slot found in VS-700R V-Studio I/O
• Double synth capability with additional VS-700R V-Studio I/O (available separately)

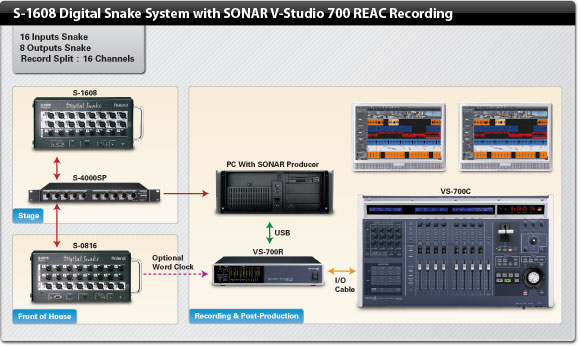

Configuration Examples
View PDF
View PDF
View PDF
View PDF
For help in configuring a computer for SONAR REAC Recording, visit PC Audio Labs.
